Setting up your phone for picture messaging

A picture message is a message which can contain pictures and other media files and can be sent to other mobile phones. You can send and receive picture messages as soon as you've inserted your SIM. If this isn't the case, you can set up your phone for picture messaging manually.

Slide two fingers downwards starting from the top of the screen.
Slide two fingers downwards starting from the top of the screen.
Step 1 of 28

Slide two fingers downwards starting from the top of the screen.

Press the settings icon.
Press the settings icon.
Step 2 of 28

Press the settings icon.

Press SIM card & mobile data.
Press SIM card & mobile data.
Step 3 of 28

Press SIM card & mobile data.

Press the required SIM.
Press the required SIM.
Step 4 of 28

Press the required SIM.

Press Access point name.
Press Access point name.
Step 5 of 28

Press Access point name.

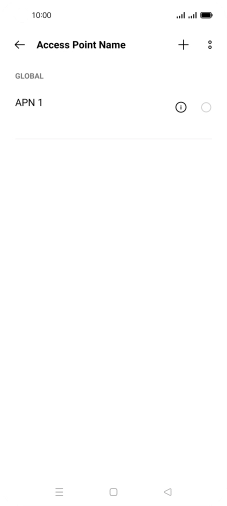

Press the add icon.
Press the add icon.
Step 6 of 28

Press the add icon.

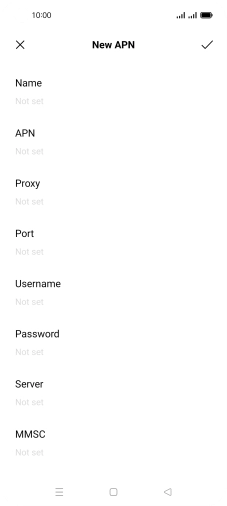

Press Name.
Press Name.
Step 7 of 28

Press Name.

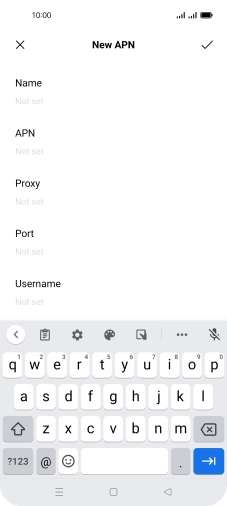

Key in EE MMS and press the confirm icon.
EE MMS
Key in EE MMS and press the confirm icon.
EE MMS
Step 8 of 28

Key in EE MMS and press the confirm icon.

Press APN.
Press APN.
Step 9 of 28

Press APN.

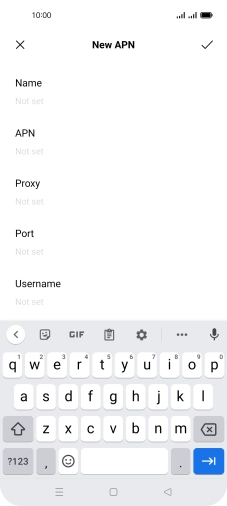

Key in eezone and press the confirm icon.
eezone
Key in eezone and press the confirm icon.
eezone
Step 10 of 28

Key in eezone and press the confirm icon.

Press Username.
Press Username.
Step 11 of 28

Press Username.

Key in eesecure and press the confirm icon.
eesecure
Key in eesecure and press the confirm icon.
eesecure
Step 12 of 28

Key in eesecure and press the confirm icon.

Press Password.
Press Password.
Step 13 of 28

Press Password.

Key in secure and press the confirm icon.
secure
Key in secure and press the confirm icon.
secure
Step 14 of 28

Key in secure and press the confirm icon.

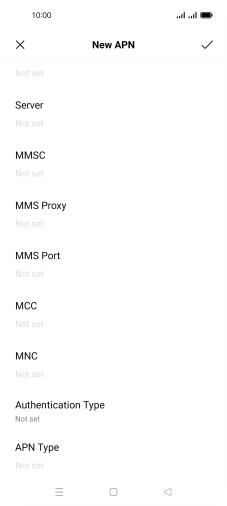

Press MMS Proxy.
Press MMS Proxy.
Step 15 of 28

Press MMS Proxy.

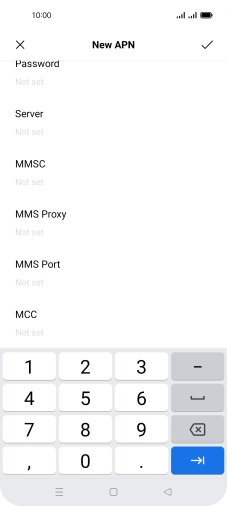

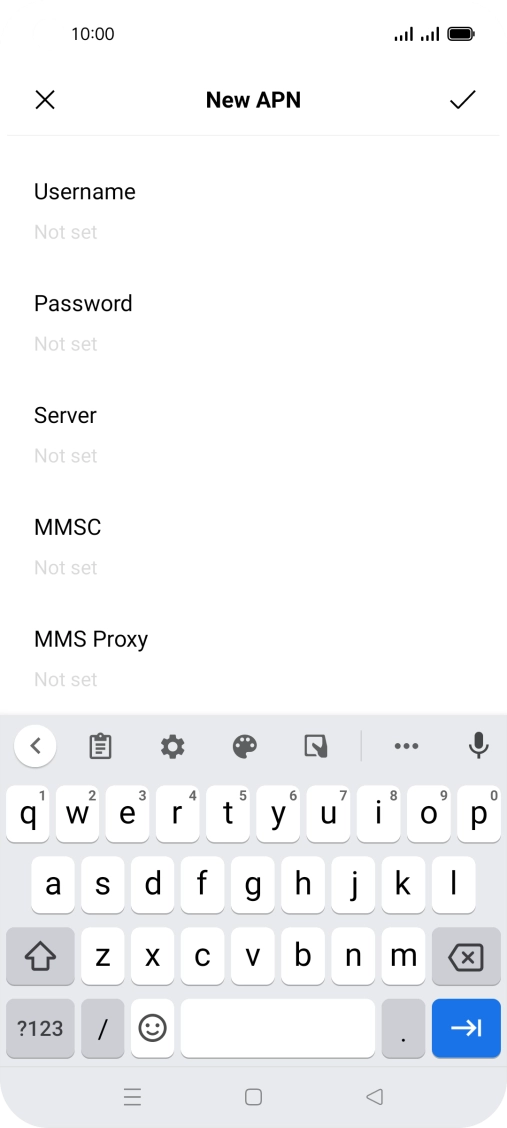

Key in 149.254.201.135 and press the confirm icon.
149.254.201.135
Key in 149.254.201.135 and press the confirm icon.
149.254.201.135
Step 16 of 28

Key in 149.254.201.135 and press the confirm icon.

Press MMS Port.
Press MMS Port.
Step 17 of 28

Press MMS Port.

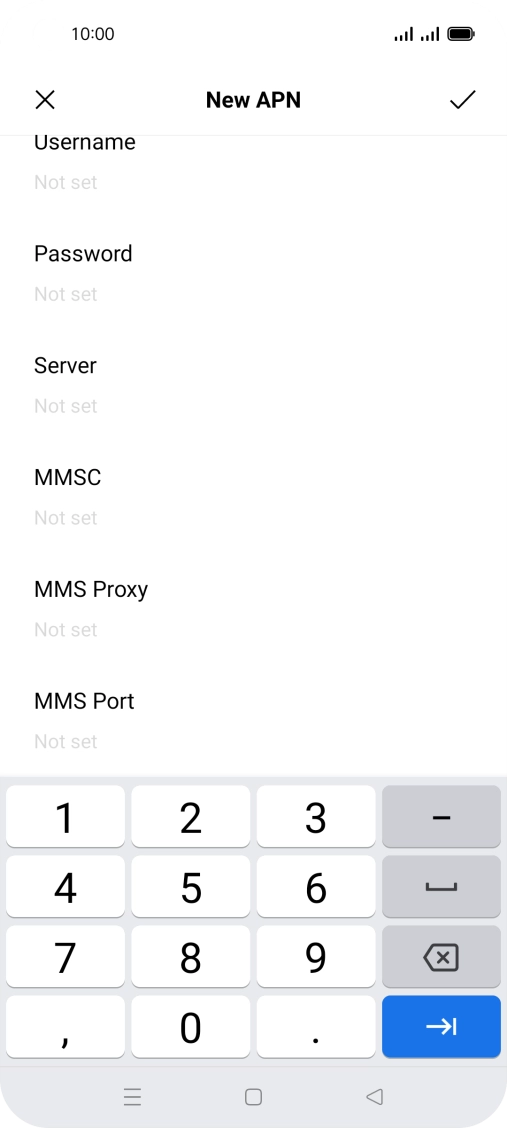

Key in 8080 and press the confirm icon.
8080
Key in 8080 and press the confirm icon.
8080
Step 18 of 28

Key in 8080 and press the confirm icon.

Press MCC.
Press MCC.
Step 19 of 28

Press MCC.

Key in 234 and press the confirm icon.
234
Key in 234 and press the confirm icon.
234
Step 20 of 28

Key in 234 and press the confirm icon.

Press MNC.
Press MNC.
Step 21 of 28

Press MNC.

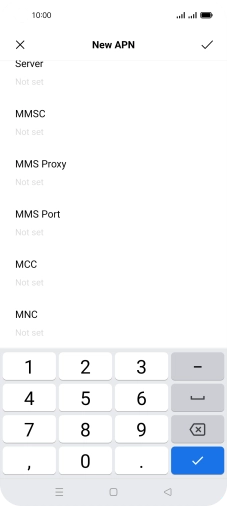

Key in 33 and press the confirm icon.
33
Key in 33 and press the confirm icon.
33
Step 22 of 28

Key in 33 and press the confirm icon.

Press Authentication Type.
Press Authentication Type.
Step 23 of 28

Press Authentication Type.

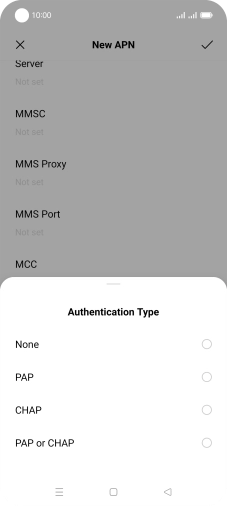

Press PAP.
Press PAP.
Step 24 of 28

Press PAP.

Press APN Type.
Press APN Type.
Step 25 of 28

Press APN Type.

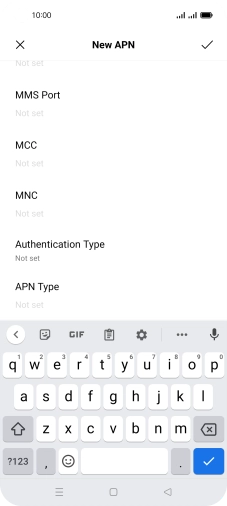

Key in mms and press the confirm icon.
mms
Key in mms and press the confirm icon.
mms
Step 26 of 28

Key in mms and press the confirm icon.

Press the confirm icon.
Press the confirm icon.
Step 27 of 28

Press the confirm icon.

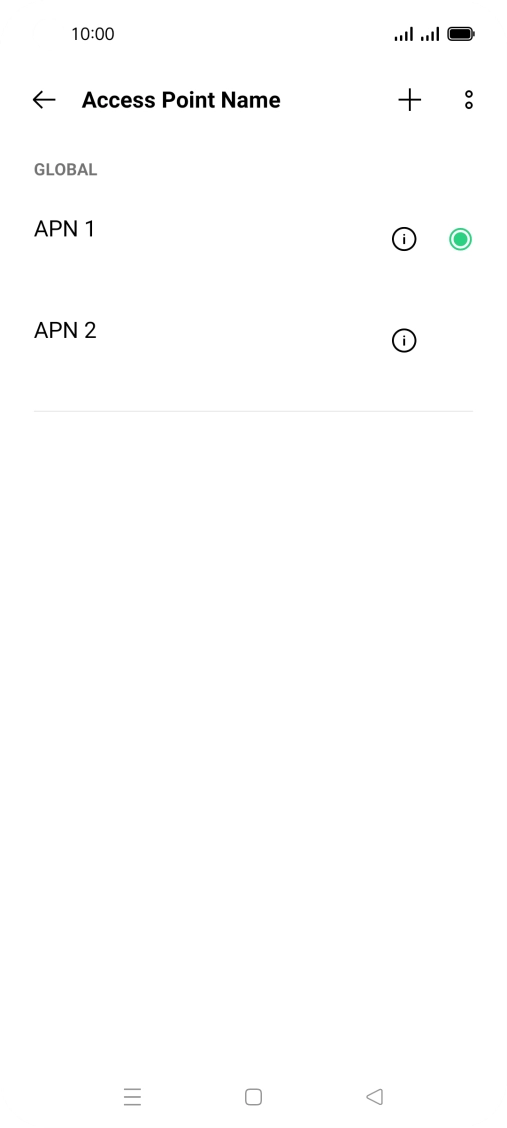

Press the Home key to return to the home screen.
Press the Home key to return to the home screen.
Step 28 of 28

Press the Home key to return to the home screen.
