Setting up your phone for picture messaging
A picture message is a message which can contain pictures and other media files and can be sent to other mobile phones. You can send and receive picture messages as soon as you've inserted your SIM. If this isn't the case, you can set up your phone for picture messaging manually.

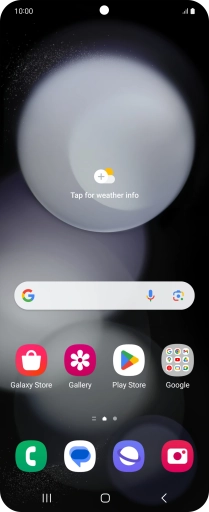

![Slide two fingers downwards starting from the top of the screen. Slide two fingers downwards starting from the top of the screen.](http://wmstatic.global.ssl.fastly.net/ml/120824-f-3464ea41-6a46-40fb-b5b9-0a17cf9092e0.png?width=210&height=512)
![Slide two fingers downwards starting from the top of the screen. Slide two fingers downwards starting from the top of the screen.](http://wmstatic.global.ssl.fastly.net/ml/120824-f-3464ea41-6a46-40fb-b5b9-0a17cf9092e0.png?width=310&height=762)
Slide two fingers downwards starting from the top of the screen.

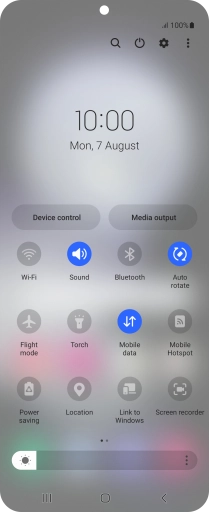

![Press the settings icon. Press the settings icon.](http://wmstatic.global.ssl.fastly.net/ml/120824-f-60f6b2a7-292f-4aed-b467-f0ec4744cd9d.png?width=210&height=512)
![Press the settings icon. Press the settings icon.](http://wmstatic.global.ssl.fastly.net/ml/120824-f-60f6b2a7-292f-4aed-b467-f0ec4744cd9d.png?width=310&height=762)
Press the settings icon.
![Press Connections. Press Connections.](http://wmstatic.global.ssl.fastly.net/ml/120824-f-af8d8d3f-bbb1-4c2e-9943-bccc301e5cc4.png?width=210&height=512)
![Press Connections. Press Connections.](http://wmstatic.global.ssl.fastly.net/ml/120824-f-af8d8d3f-bbb1-4c2e-9943-bccc301e5cc4.png?width=310&height=762)

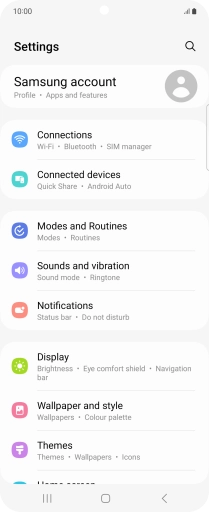

Press Connections.

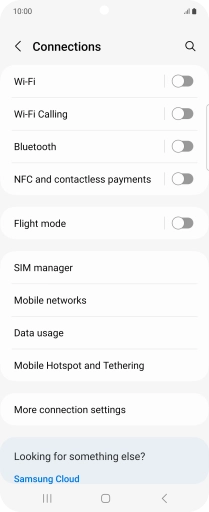

![Press Mobile networks. Press Mobile networks.](http://wmstatic.global.ssl.fastly.net/ml/120824-f-bae82afa-ee32-4bc5-b450-745c8c33e6d7.png?width=210&height=512)
![Press Mobile networks. Press Mobile networks.](http://wmstatic.global.ssl.fastly.net/ml/120824-f-bae82afa-ee32-4bc5-b450-745c8c33e6d7.png?width=310&height=762)
Press Mobile networks.

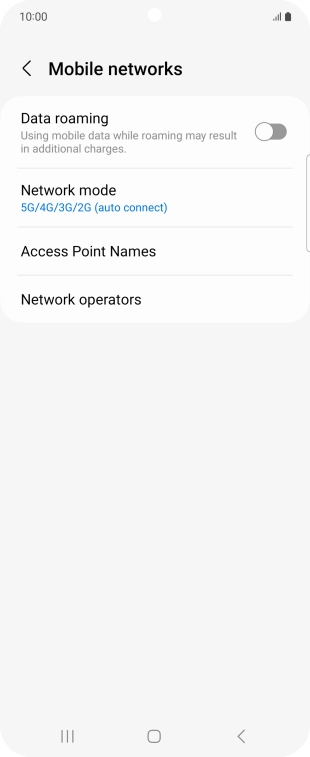

![Press Access Point Names. Press Access Point Names.](http://wmstatic.global.ssl.fastly.net/ml/120824-f-95b8d2b8-07bf-4470-93cd-13325dee6723.png?width=210&height=512)
![Press Access Point Names. Press Access Point Names.](http://wmstatic.global.ssl.fastly.net/ml/120824-f-95b8d2b8-07bf-4470-93cd-13325dee6723.png?width=310&height=762)
Press Access Point Names.
![Press Add. Press Add.](http://wmstatic.global.ssl.fastly.net/ml/120824-f-89949ecd-3667-436e-a249-6a3fdb23e26a.png?width=210&height=512)
![Press Add. Press Add.](http://wmstatic.global.ssl.fastly.net/ml/120824-f-89949ecd-3667-436e-a249-6a3fdb23e26a.png?width=310&height=762)

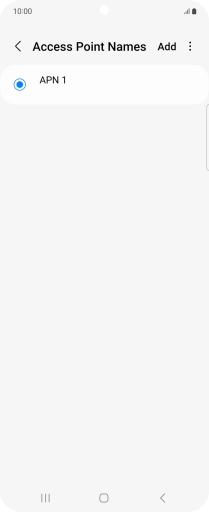

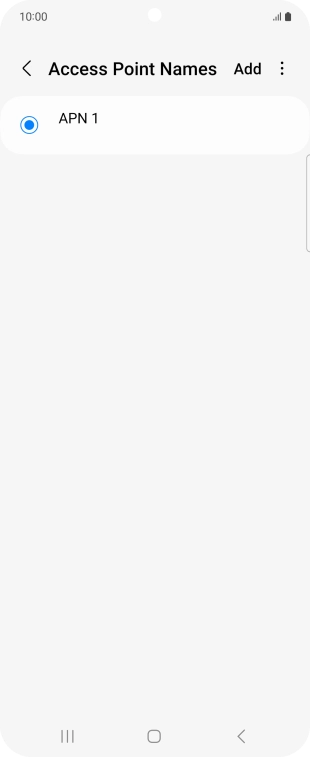

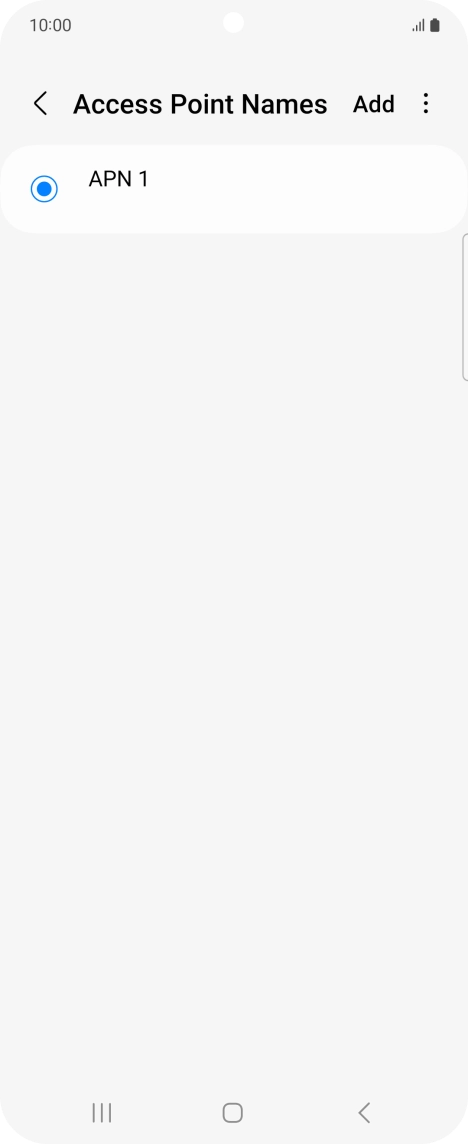

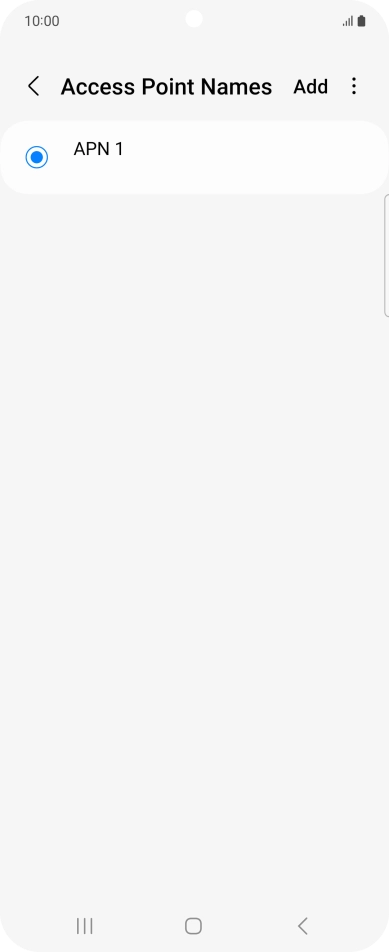

Press Add.

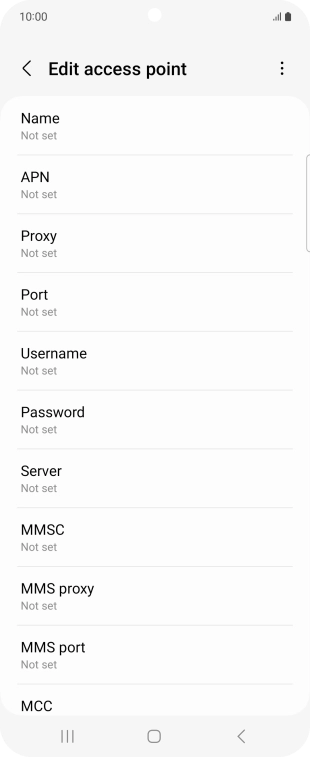

![Press Name. Press Name.](http://wmstatic.global.ssl.fastly.net/ml/120824-f-7d0ea8d9-c851-4a90-8526-e7c97ceb825a.png?width=210&height=512)
![Press Name. Press Name.](http://wmstatic.global.ssl.fastly.net/ml/120824-f-7d0ea8d9-c851-4a90-8526-e7c97ceb825a.png?width=310&height=762)

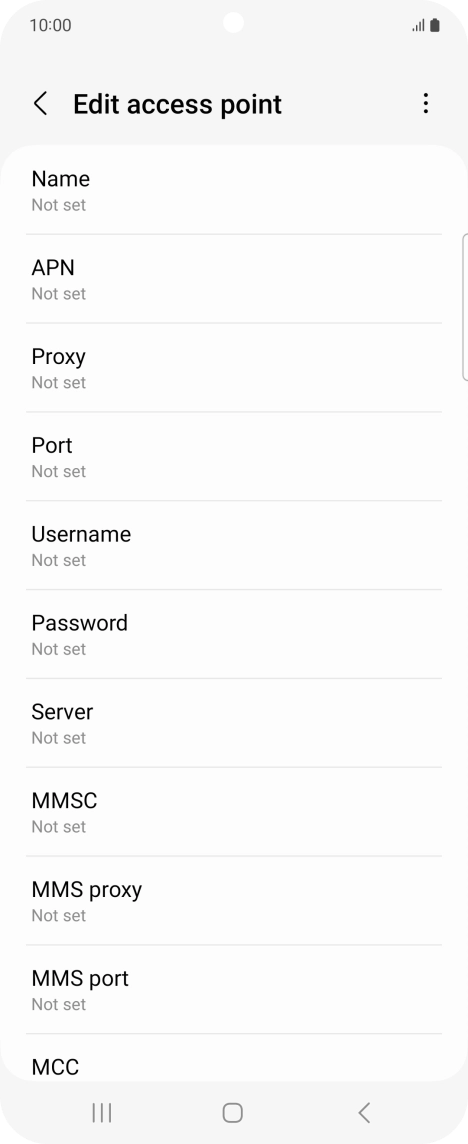

Press Name.
![Key in EE MMS and press OK. Key in EE MMS and press OK.](http://wmstatic.global.ssl.fastly.net/ml/120824-f-d057dab0-5e36-4b1c-b274-e3a9c1a48e81.png?width=210&height=512)
![Key in EE MMS and press OK. Key in EE MMS and press OK.](http://wmstatic.global.ssl.fastly.net/ml/120824-f-d057dab0-5e36-4b1c-b274-e3a9c1a48e81.png?width=310&height=762)

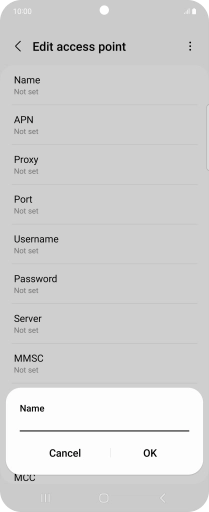

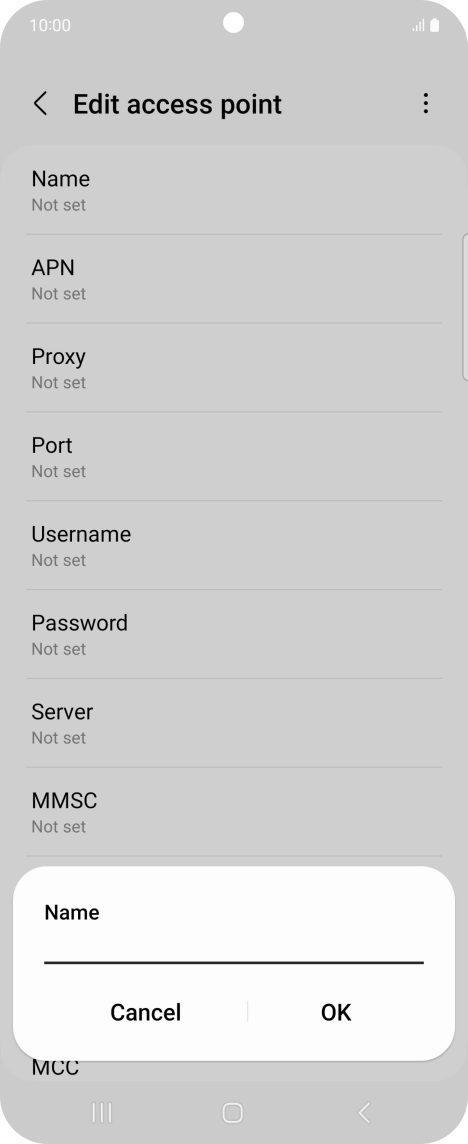

Key in EE MMS and press OK.
![Press APN. Press APN.](http://wmstatic.global.ssl.fastly.net/ml/120824-f-7d0ea8d9-c851-4a90-8526-e7c97ceb825a.png?width=210&height=512)
![Press APN. Press APN.](http://wmstatic.global.ssl.fastly.net/ml/120824-f-7d0ea8d9-c851-4a90-8526-e7c97ceb825a.png?width=310&height=762)
Press APN.
![Key in eezone and press OK. Key in eezone and press OK.](http://wmstatic.global.ssl.fastly.net/ml/120824-f-3be02245-3494-4f9c-be5d-c9e96798f0df.png?width=210&height=512)
![Key in eezone and press OK. Key in eezone and press OK.](http://wmstatic.global.ssl.fastly.net/ml/120824-f-3be02245-3494-4f9c-be5d-c9e96798f0df.png?width=310&height=762)

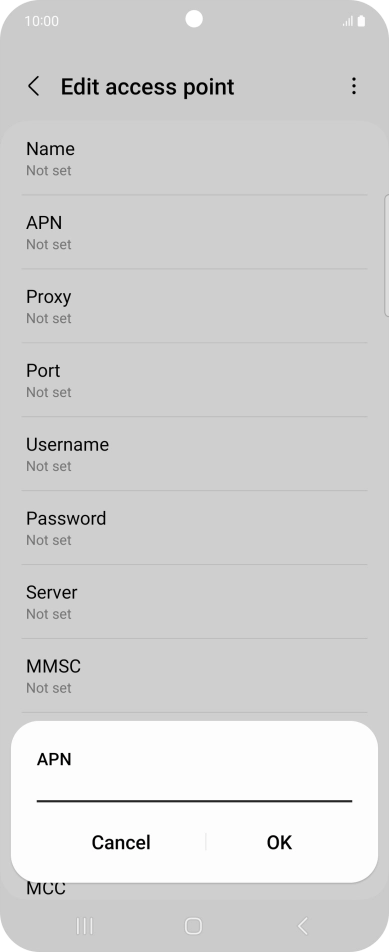

Key in eezone and press OK.
![Press Username. Press Username.](http://wmstatic.global.ssl.fastly.net/ml/120824-f-7d0ea8d9-c851-4a90-8526-e7c97ceb825a.png?width=210&height=512)
![Press Username. Press Username.](http://wmstatic.global.ssl.fastly.net/ml/120824-f-7d0ea8d9-c851-4a90-8526-e7c97ceb825a.png?width=310&height=762)
Press Username.
![Key in eesecure and press OK. Key in eesecure and press OK.](http://wmstatic.global.ssl.fastly.net/ml/120824-f-ae927bc2-7ae1-454b-84ef-af8a5fdebeff.png?width=210&height=512)
![Key in eesecure and press OK. Key in eesecure and press OK.](http://wmstatic.global.ssl.fastly.net/ml/120824-f-ae927bc2-7ae1-454b-84ef-af8a5fdebeff.png?width=310&height=762)

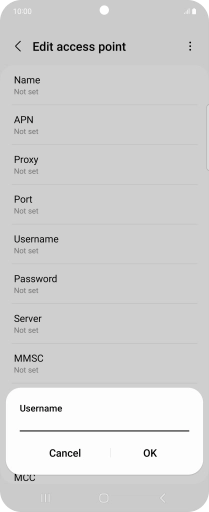

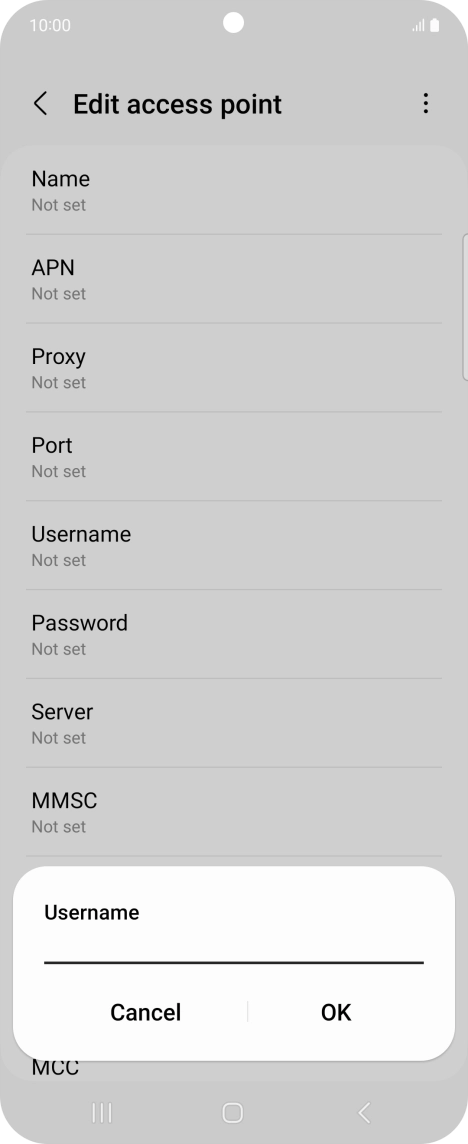

Key in eesecure and press OK.
![Press Password. Press Password.](http://wmstatic.global.ssl.fastly.net/ml/120824-f-7d0ea8d9-c851-4a90-8526-e7c97ceb825a.png?width=210&height=512)
![Press Password. Press Password.](http://wmstatic.global.ssl.fastly.net/ml/120824-f-7d0ea8d9-c851-4a90-8526-e7c97ceb825a.png?width=310&height=762)
Press Password.
![Key in secure and press OK. Key in secure and press OK.](http://wmstatic.global.ssl.fastly.net/ml/120824-f-26cf575a-1e00-495d-8106-d94c908ef90e.png?width=210&height=512)
![Key in secure and press OK. Key in secure and press OK.](http://wmstatic.global.ssl.fastly.net/ml/120824-f-26cf575a-1e00-495d-8106-d94c908ef90e.png?width=310&height=762)
Key in secure and press OK.
![Press MMS proxy. Press MMS proxy.](http://wmstatic.global.ssl.fastly.net/ml/120824-f-7d0ea8d9-c851-4a90-8526-e7c97ceb825a.png?width=210&height=512)
![Press MMS proxy. Press MMS proxy.](http://wmstatic.global.ssl.fastly.net/ml/120824-f-7d0ea8d9-c851-4a90-8526-e7c97ceb825a.png?width=310&height=762)
Press MMS proxy.

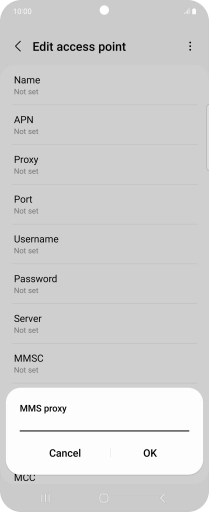

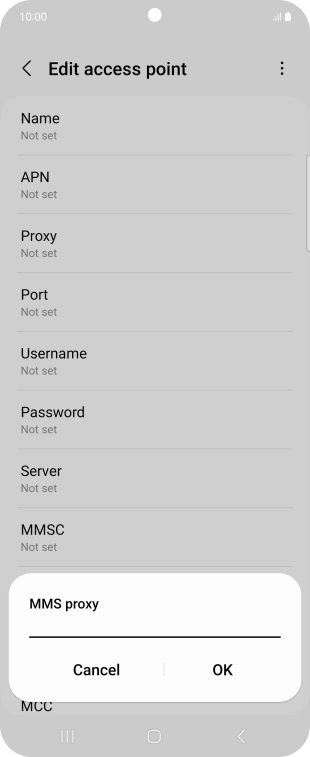

![Key in 149.254.201.135 and press OK. Key in 149.254.201.135 and press OK.](http://wmstatic.global.ssl.fastly.net/ml/120824-f-6199d5e2-d2dd-4753-bdb4-9833c121dd3a.png?width=210&height=512)
![Key in 149.254.201.135 and press OK. Key in 149.254.201.135 and press OK.](http://wmstatic.global.ssl.fastly.net/ml/120824-f-6199d5e2-d2dd-4753-bdb4-9833c121dd3a.png?width=310&height=762)

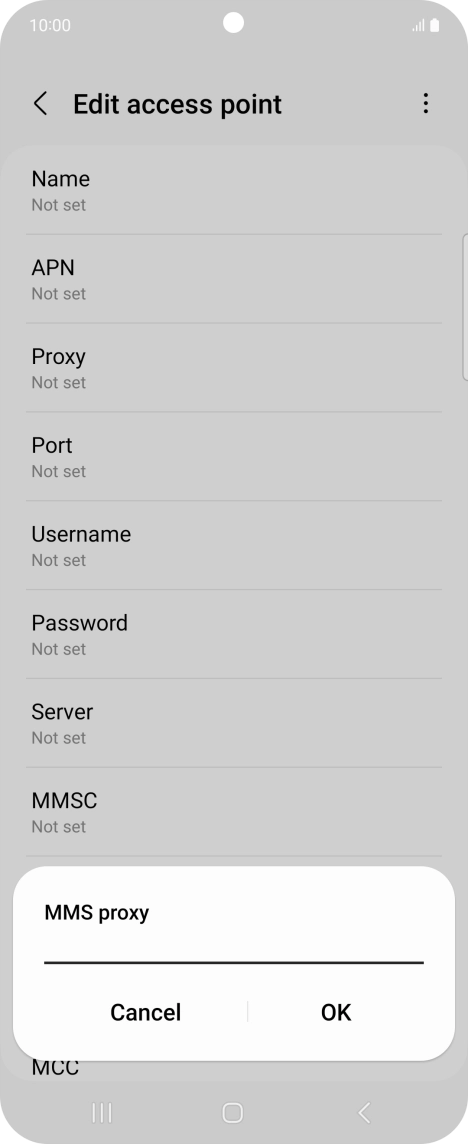

Key in 149.254.201.135 and press OK.
![Press MMS port. Press MMS port.](http://wmstatic.global.ssl.fastly.net/ml/120824-f-7d0ea8d9-c851-4a90-8526-e7c97ceb825a.png?width=210&height=512)
![Press MMS port. Press MMS port.](http://wmstatic.global.ssl.fastly.net/ml/120824-f-7d0ea8d9-c851-4a90-8526-e7c97ceb825a.png?width=310&height=762)
Press MMS port.
![Key in 8080 and press OK. Key in 8080 and press OK.](http://wmstatic.global.ssl.fastly.net/ml/120824-f-a2272f73-89f6-49a3-ac9b-80f2cef05823.png?width=210&height=512)
![Key in 8080 and press OK. Key in 8080 and press OK.](http://wmstatic.global.ssl.fastly.net/ml/120824-f-a2272f73-89f6-49a3-ac9b-80f2cef05823.png?width=310&height=762)

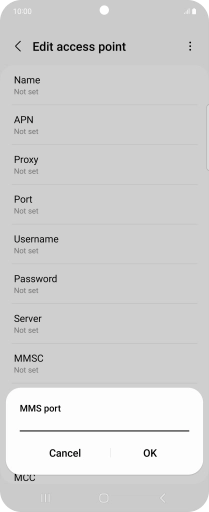

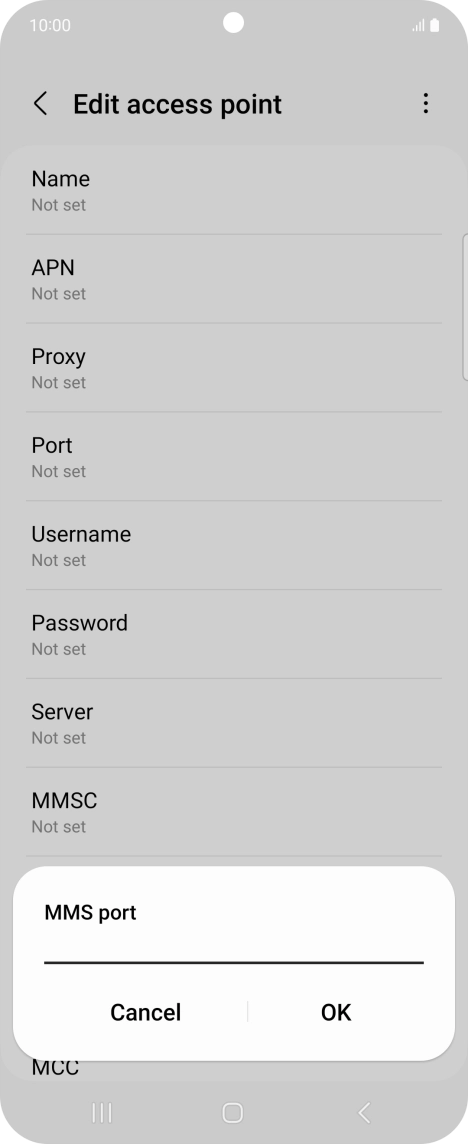

Key in 8080 and press OK.
![Press MCC. Press MCC.](http://wmstatic.global.ssl.fastly.net/ml/120824-f-0ee6094a-d132-4c03-951d-6babfd1172d0.png?width=210&height=512)
![Press MCC. Press MCC.](http://wmstatic.global.ssl.fastly.net/ml/120824-f-0ee6094a-d132-4c03-951d-6babfd1172d0.png?width=310&height=762)

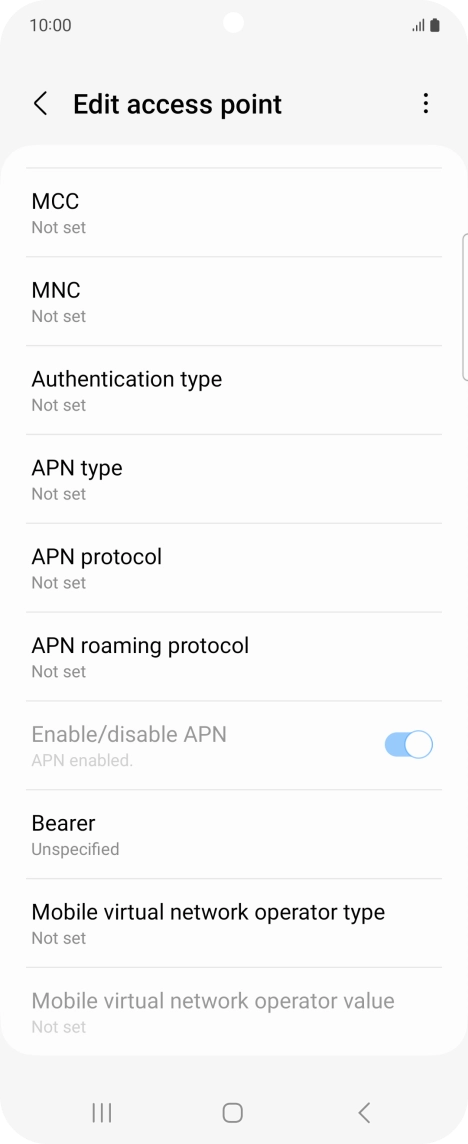

Press MCC.
![Key in 234 and press OK. Key in 234 and press OK.](http://wmstatic.global.ssl.fastly.net/ml/120824-f-3387e264-6a66-47aa-8b17-ab7e8ee96df4.png?width=210&height=512)
![Key in 234 and press OK. Key in 234 and press OK.](http://wmstatic.global.ssl.fastly.net/ml/120824-f-3387e264-6a66-47aa-8b17-ab7e8ee96df4.png?width=310&height=762)
Key in 234 and press OK.
![Press MNC. Press MNC.](http://wmstatic.global.ssl.fastly.net/ml/120824-f-0ee6094a-d132-4c03-951d-6babfd1172d0.png?width=210&height=512)
![Press MNC. Press MNC.](http://wmstatic.global.ssl.fastly.net/ml/120824-f-0ee6094a-d132-4c03-951d-6babfd1172d0.png?width=310&height=762)
Press MNC.
![Key in 33 and press OK. Key in 33 and press OK.](http://wmstatic.global.ssl.fastly.net/ml/120824-f-23e50d33-2a18-4852-9fd9-48894e844e26.png?width=210&height=512)
![Key in 33 and press OK. Key in 33 and press OK.](http://wmstatic.global.ssl.fastly.net/ml/120824-f-23e50d33-2a18-4852-9fd9-48894e844e26.png?width=310&height=762)

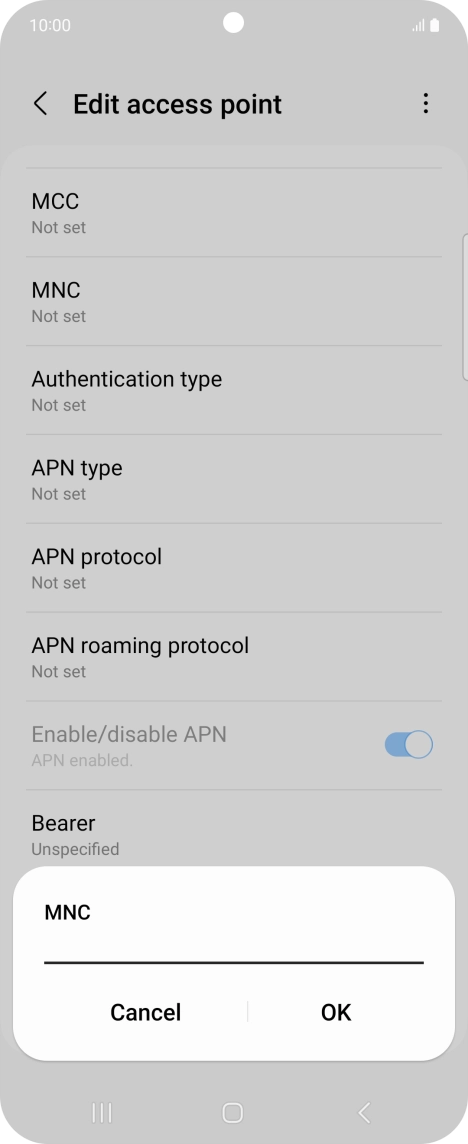

Key in 33 and press OK.
![Press Authentication type. Press Authentication type.](http://wmstatic.global.ssl.fastly.net/ml/120824-f-0ee6094a-d132-4c03-951d-6babfd1172d0.png?width=210&height=512)
![Press Authentication type. Press Authentication type.](http://wmstatic.global.ssl.fastly.net/ml/120824-f-0ee6094a-d132-4c03-951d-6babfd1172d0.png?width=310&height=762)
Press Authentication type.

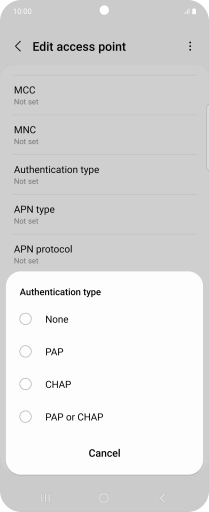

![Press PAP. Press PAP.](http://wmstatic.global.ssl.fastly.net/ml/120824-f-666a482d-9d08-4ba1-9149-92bf9a681fb5.png?width=210&height=512)
![Press PAP. Press PAP.](http://wmstatic.global.ssl.fastly.net/ml/120824-f-666a482d-9d08-4ba1-9149-92bf9a681fb5.png?width=310&height=762)

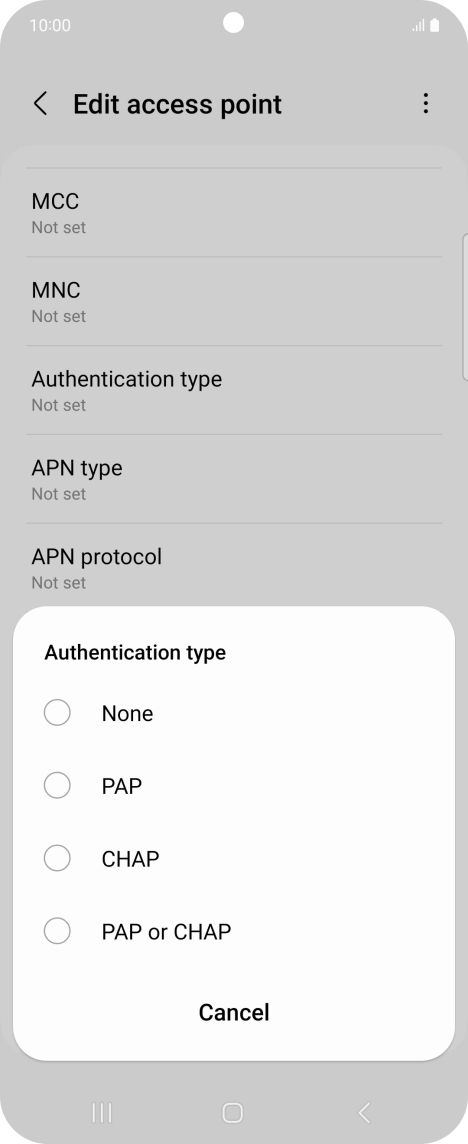

Press PAP.
![Press APN type. Press APN type.](http://wmstatic.global.ssl.fastly.net/ml/120824-f-0ee6094a-d132-4c03-951d-6babfd1172d0.png?width=210&height=512)
![Press APN type. Press APN type.](http://wmstatic.global.ssl.fastly.net/ml/120824-f-0ee6094a-d132-4c03-951d-6babfd1172d0.png?width=310&height=762)
Press APN type.
![Key in mms and press OK. Key in mms and press OK.](http://wmstatic.global.ssl.fastly.net/ml/120824-f-a6a634ee-e5d9-4bf6-81bf-804b0f314b70.png?width=210&height=512)
![Key in mms and press OK. Key in mms and press OK.](http://wmstatic.global.ssl.fastly.net/ml/120824-f-a6a634ee-e5d9-4bf6-81bf-804b0f314b70.png?width=310&height=762)

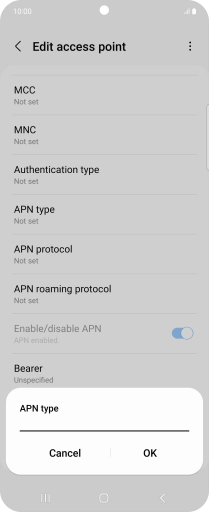

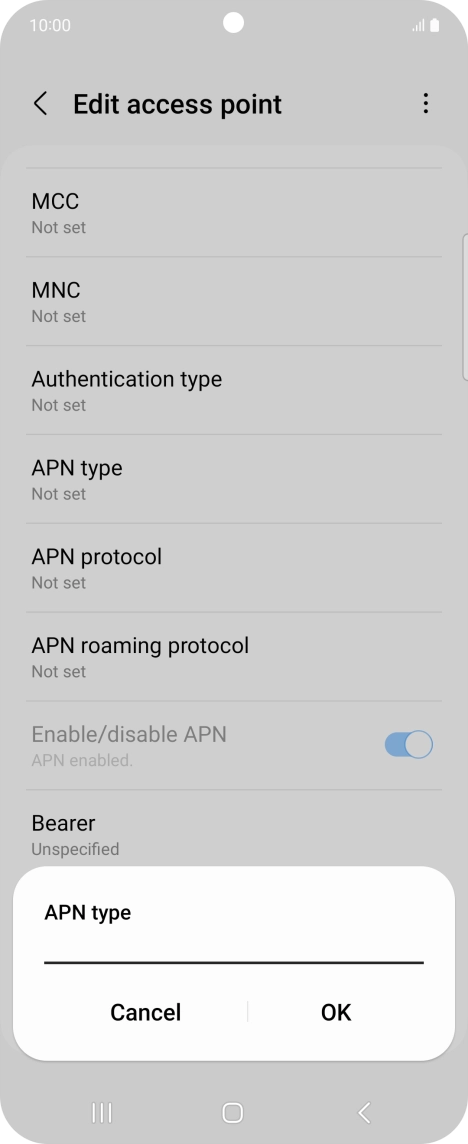

Key in mms and press OK.
![Press the menu icon. Press the menu icon.](http://wmstatic.global.ssl.fastly.net/ml/120824-f-0ee6094a-d132-4c03-951d-6babfd1172d0.png?width=210&height=512)
![Press the menu icon. Press the menu icon.](http://wmstatic.global.ssl.fastly.net/ml/120824-f-0ee6094a-d132-4c03-951d-6babfd1172d0.png?width=310&height=762)
Press the menu icon.
![Press Save. Press Save.](http://wmstatic.global.ssl.fastly.net/ml/120824-f-72d67f92-e145-439e-bd5b-c0d254b47264.png?width=210&height=512)
![Press Save. Press Save.](http://wmstatic.global.ssl.fastly.net/ml/120824-f-72d67f92-e145-439e-bd5b-c0d254b47264.png?width=310&height=762)

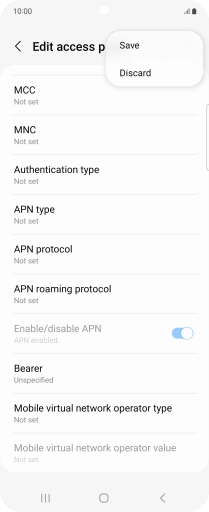

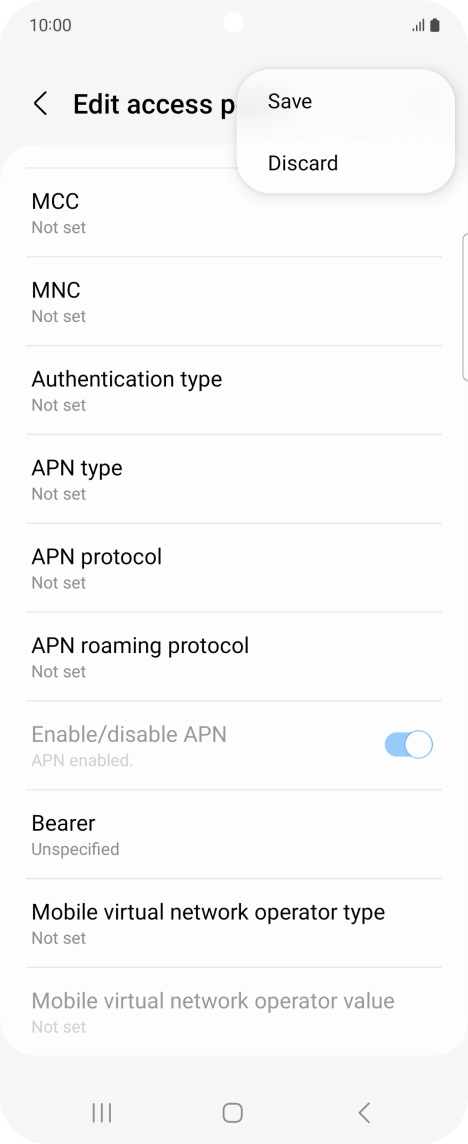

Press Save.
![Press the Home key to return to the home screen. Press the Home key to return to the home screen.](http://wmstatic.global.ssl.fastly.net/ml/120824-f-5b4b9898-e759-4e4c-ab8a-c3b39449eb8d.png?width=210&height=512)
![Press the Home key to return to the home screen. Press the Home key to return to the home screen.](http://wmstatic.global.ssl.fastly.net/ml/120824-f-5b4b9898-e759-4e4c-ab8a-c3b39449eb8d.png?width=310&height=762)

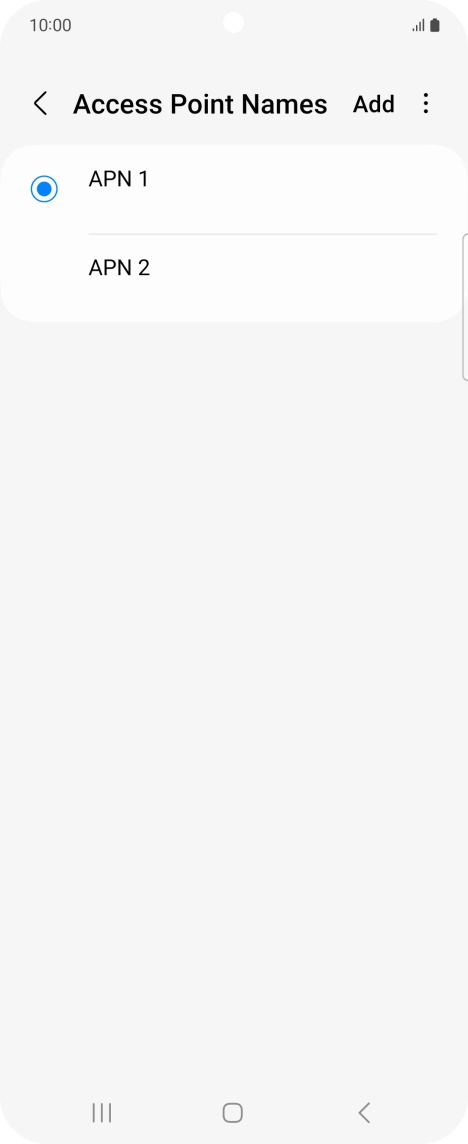

Press the Home key to return to the home screen.
