Setting up your phone for picture messaging

A picture message is a message which can contain pictures and other media files and can be sent to other mobile phones. You can send and receive picture messages as soon as you've inserted your SIM. If this isn't the case, you can set up your phone for picture messaging manually.

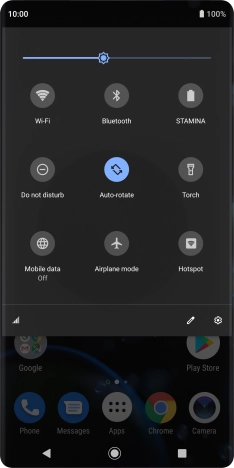

Slide two fingers downwards starting from the top of the screen.
Step 1 of 30

Slide two fingers downwards starting from the top of the screen.

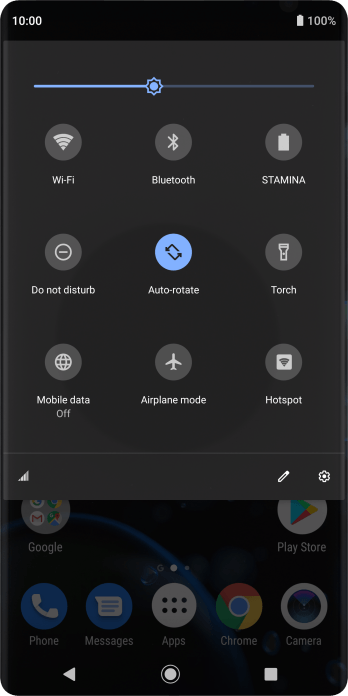

Press the settings icon.
Step 2 of 30

Press the settings icon.

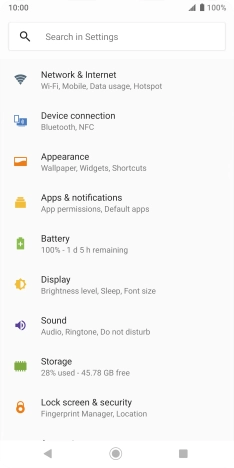

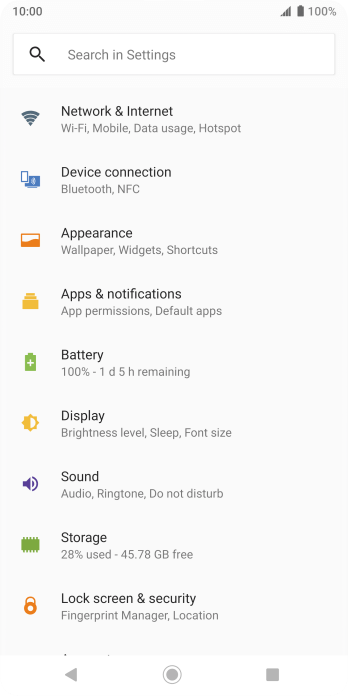

Press Network & Internet.
Step 3 of 30

Press Network & Internet.

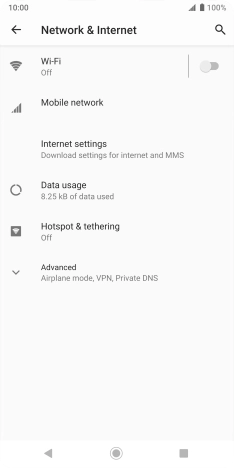

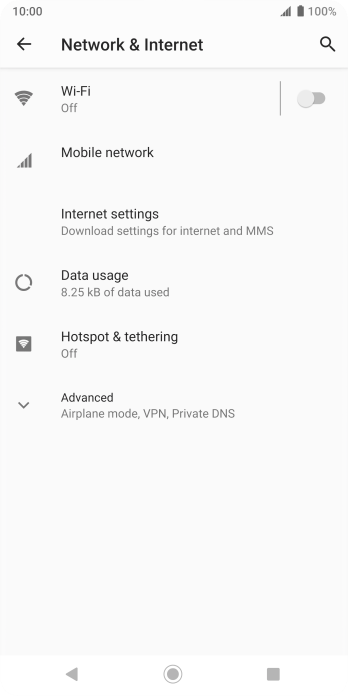

Press Mobile network.
Step 4 of 30

Press Mobile network.

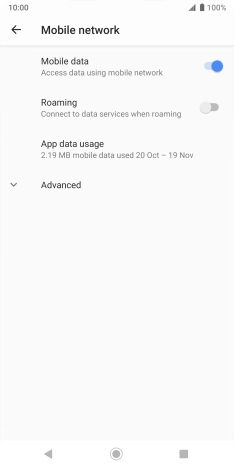

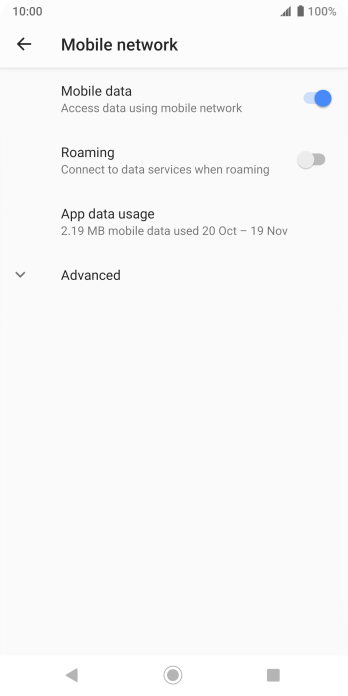

Press Advanced.
Step 5 of 30

Press Advanced.

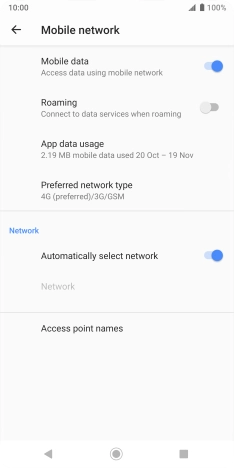

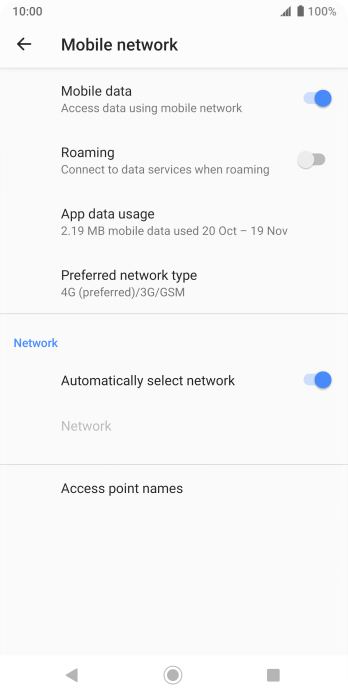

Press Access point names.
Step 6 of 30

Press Access point names.

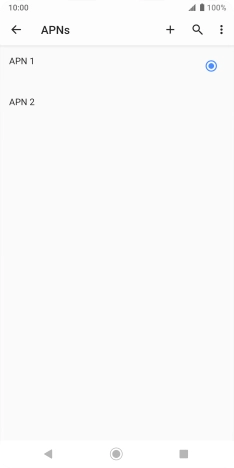

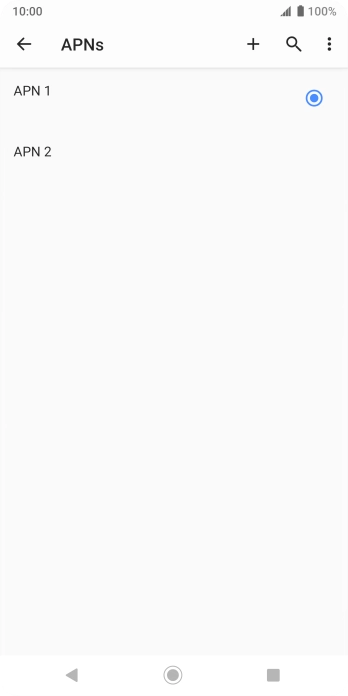

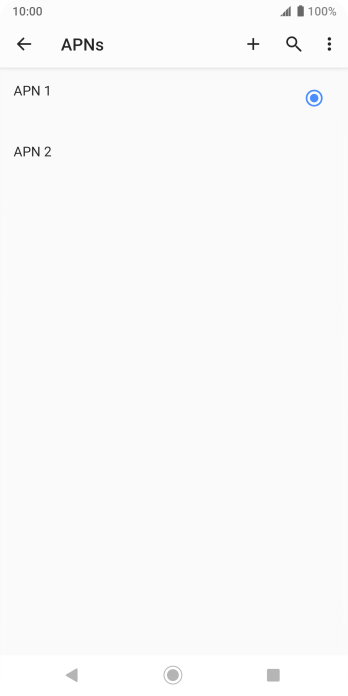

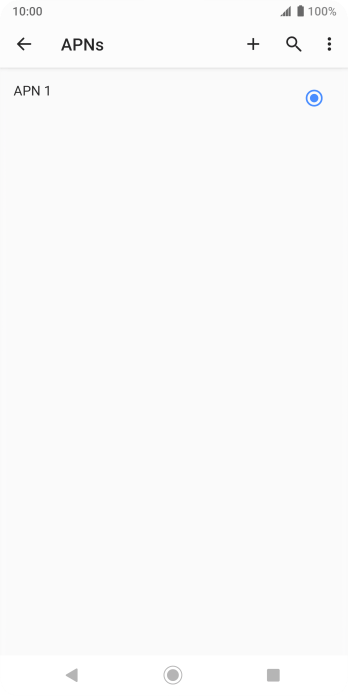

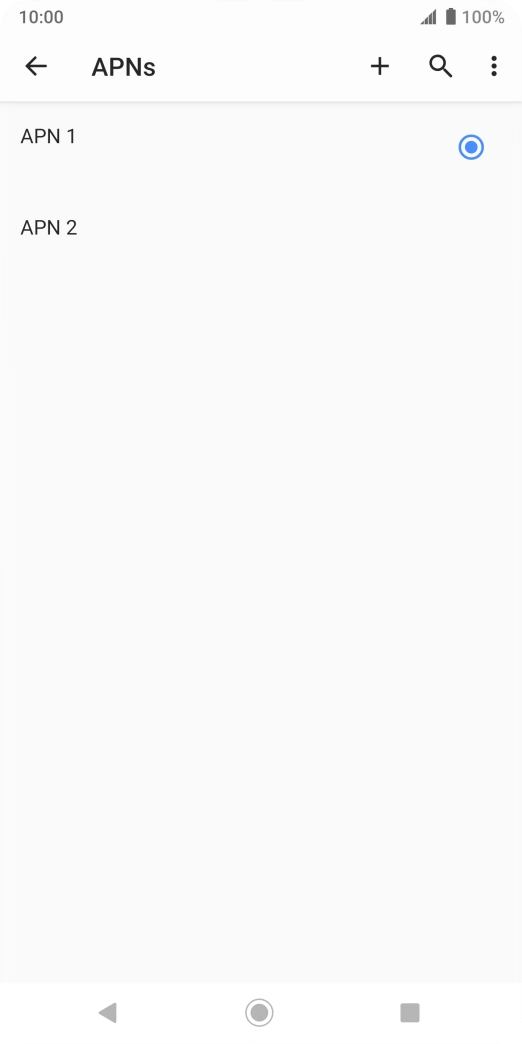

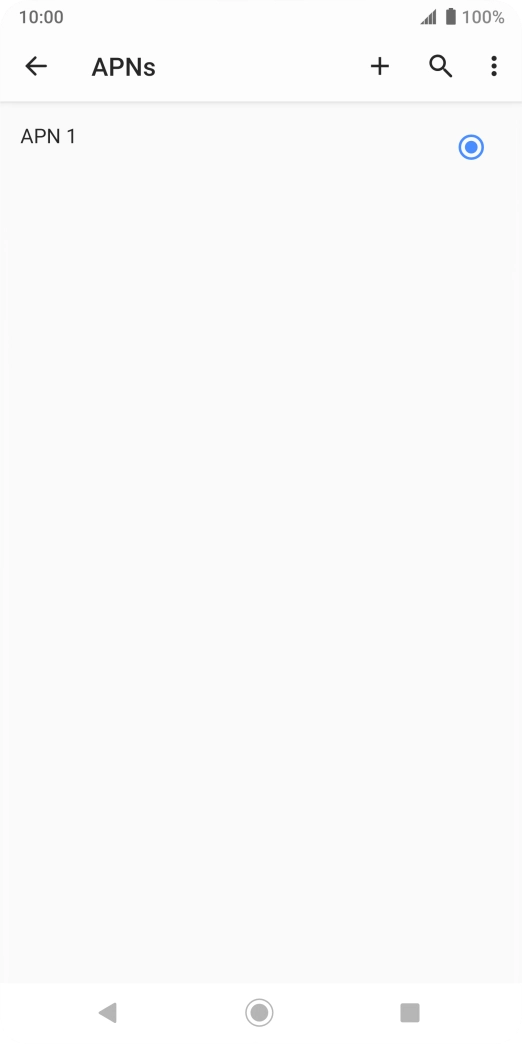

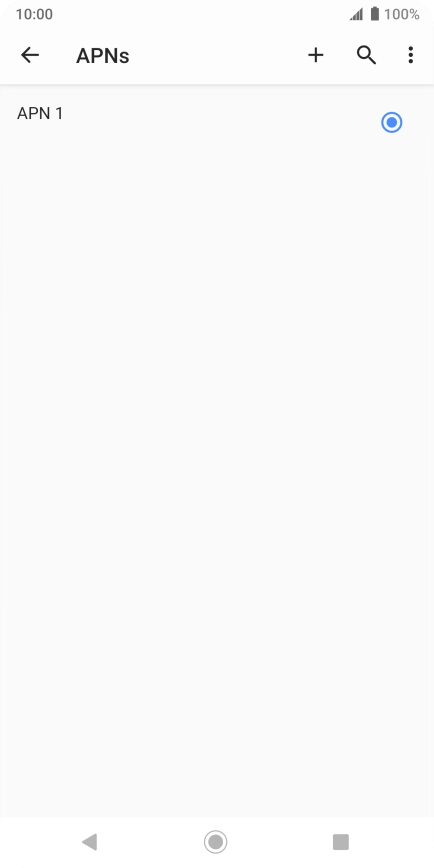

Press the new data connection icon.
Step 7 of 30

Press the new data connection icon.

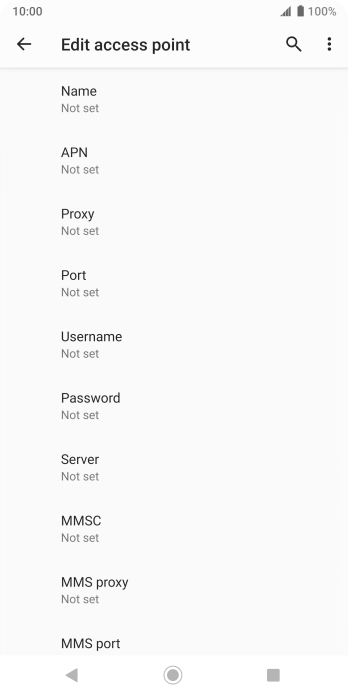

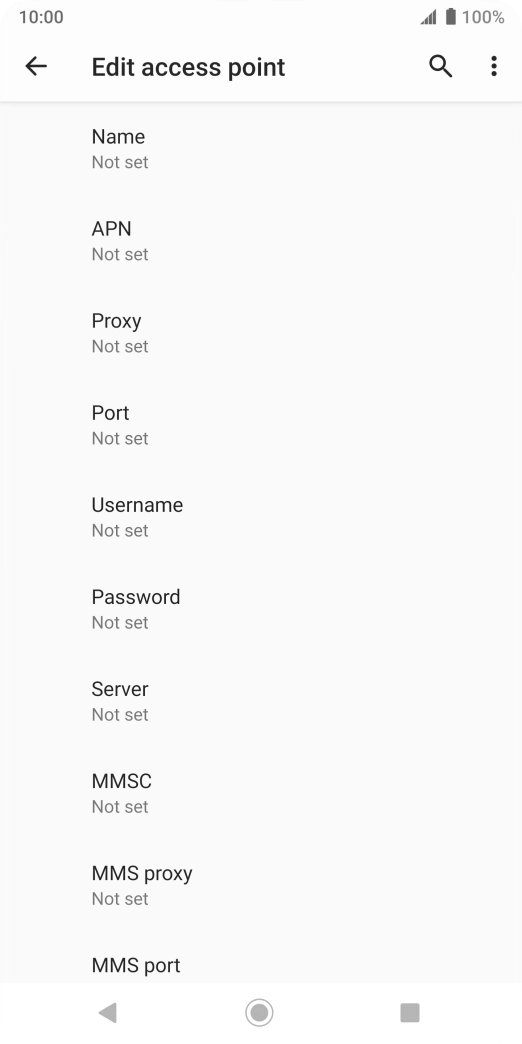

Press Name.
Step 8 of 30

Press Name.

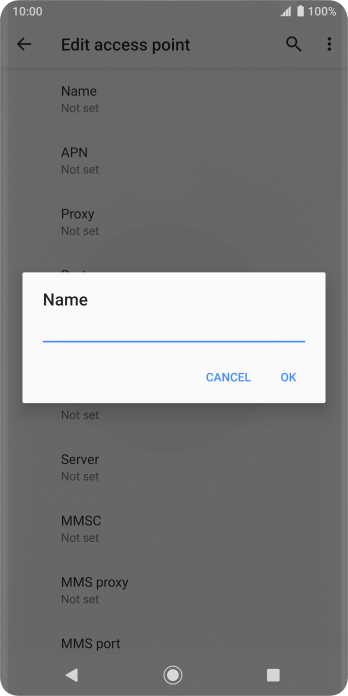

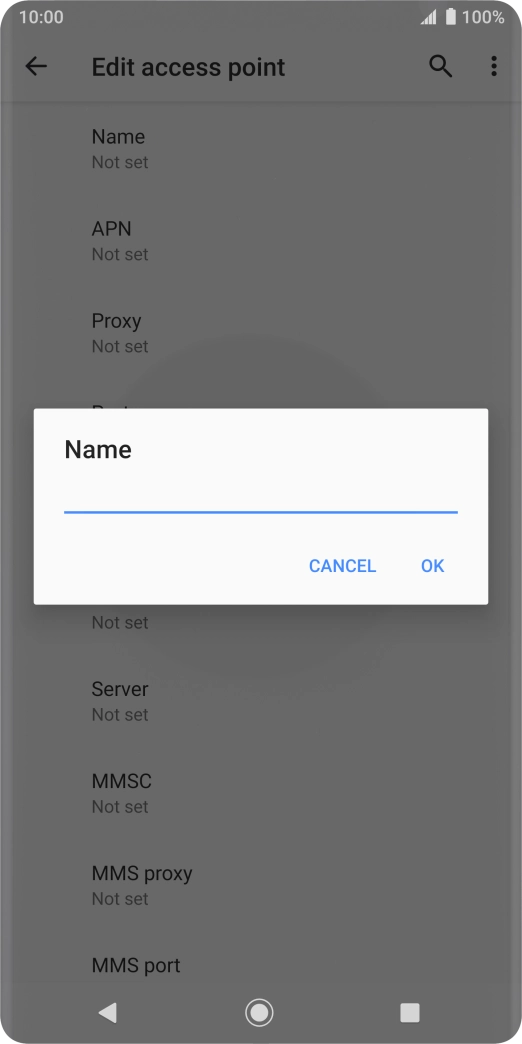

Key in EE MMS and press OK.
EE MMS
Step 9 of 30

Key in EE MMS and press OK.

Press APN.
Step 10 of 30

Press APN.

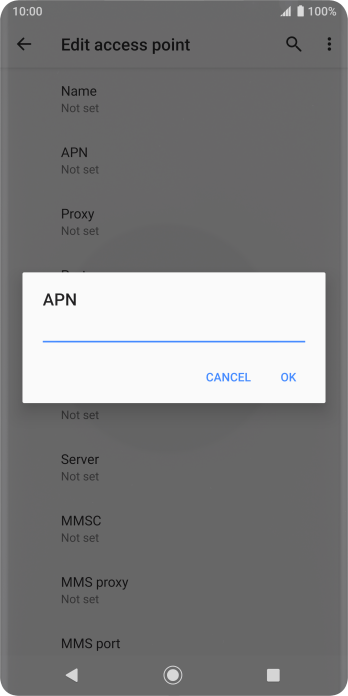

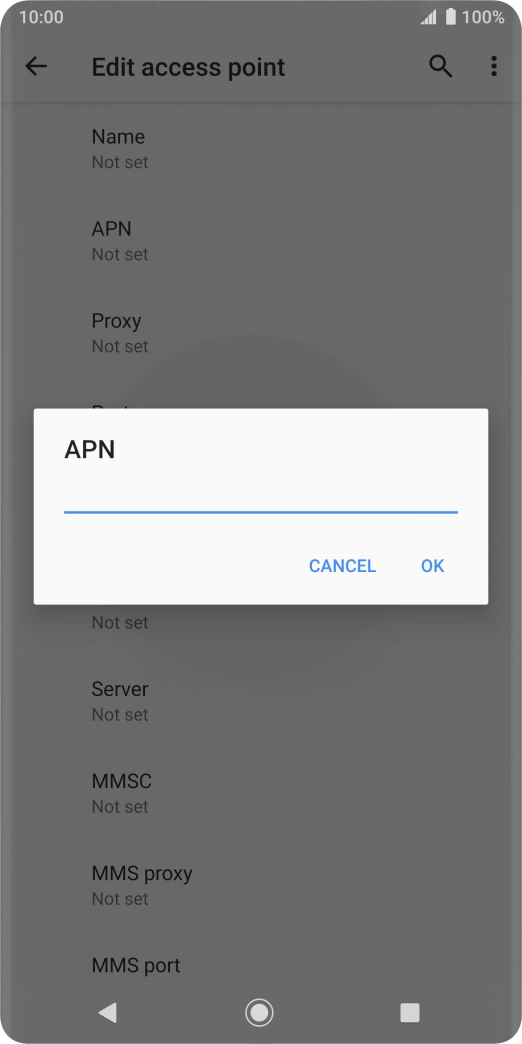

Key in eezone and press OK.
eezone
Step 11 of 30

Key in eezone and press OK.

Press Username.
Step 12 of 30

Press Username.

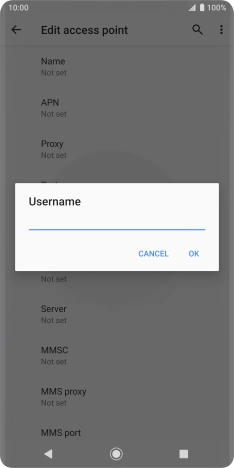

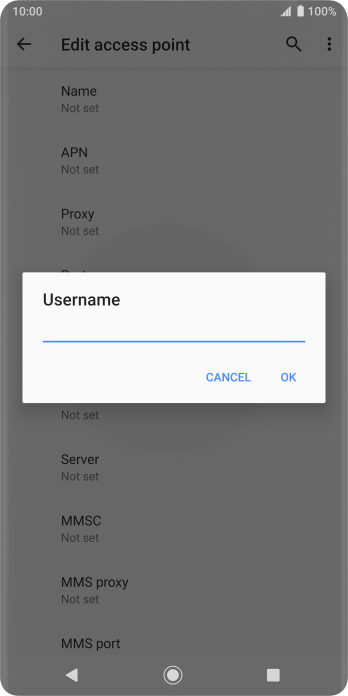

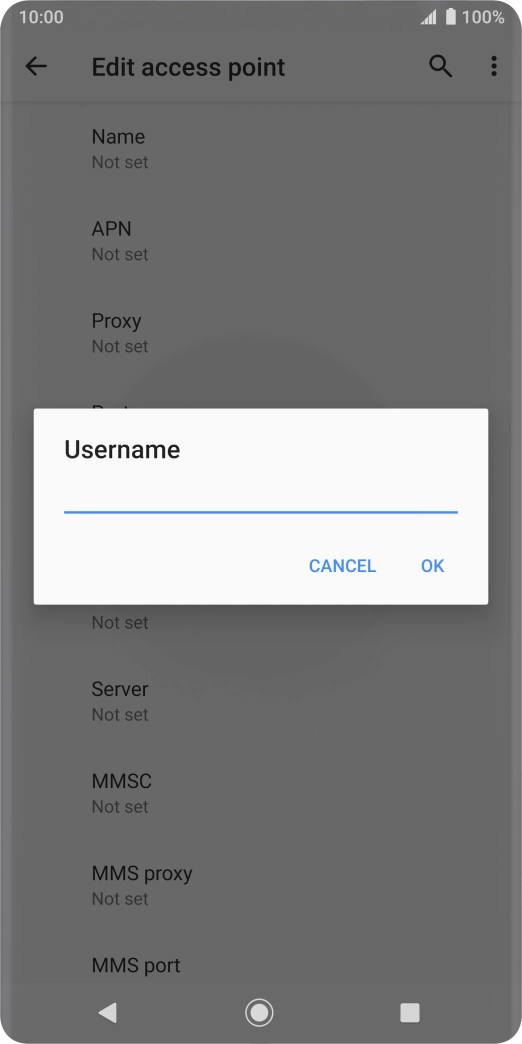

Key in eesecure and press OK.
eesecure
Step 13 of 30

Key in eesecure and press OK.

Press Password.
Step 14 of 30

Press Password.

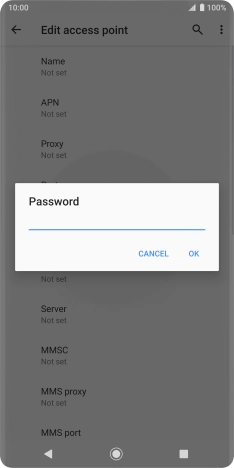

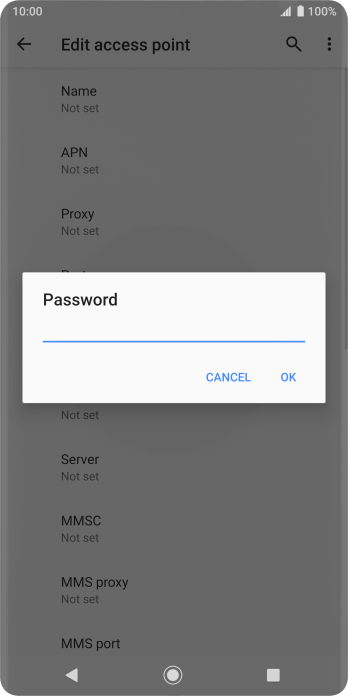

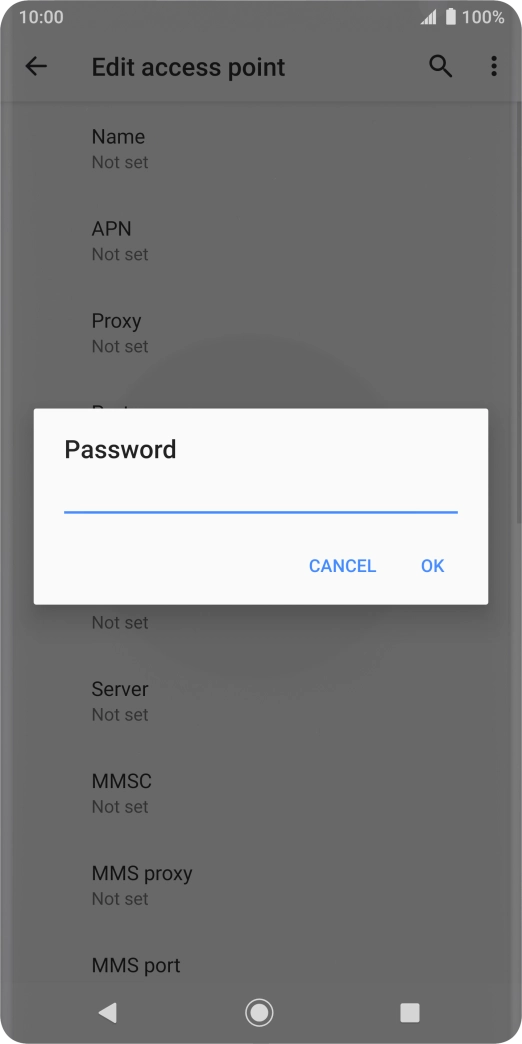

Key in secure and press OK.
secure
Step 15 of 30

Key in secure and press OK.

Press MMS proxy.
Step 16 of 30

Press MMS proxy.

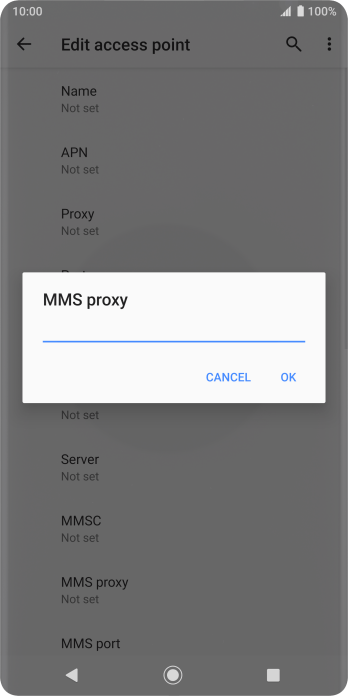

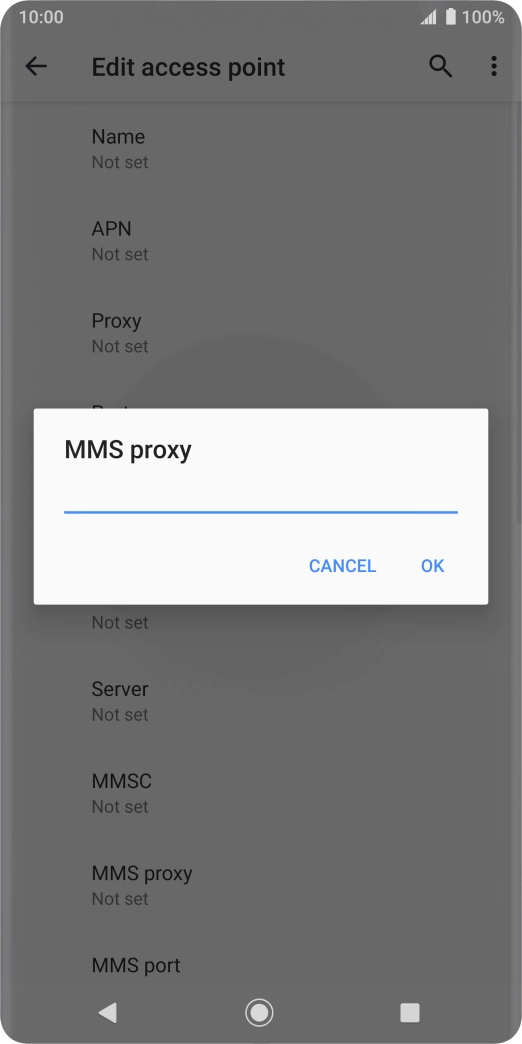

Key in 149.254.201.135 and press OK.
149.254.201.135
Step 17 of 30

Key in 149.254.201.135 and press OK.

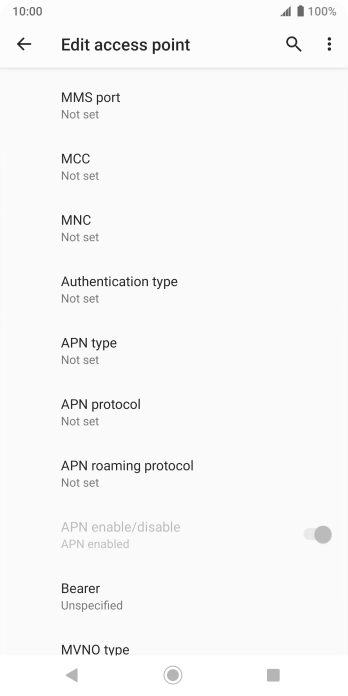

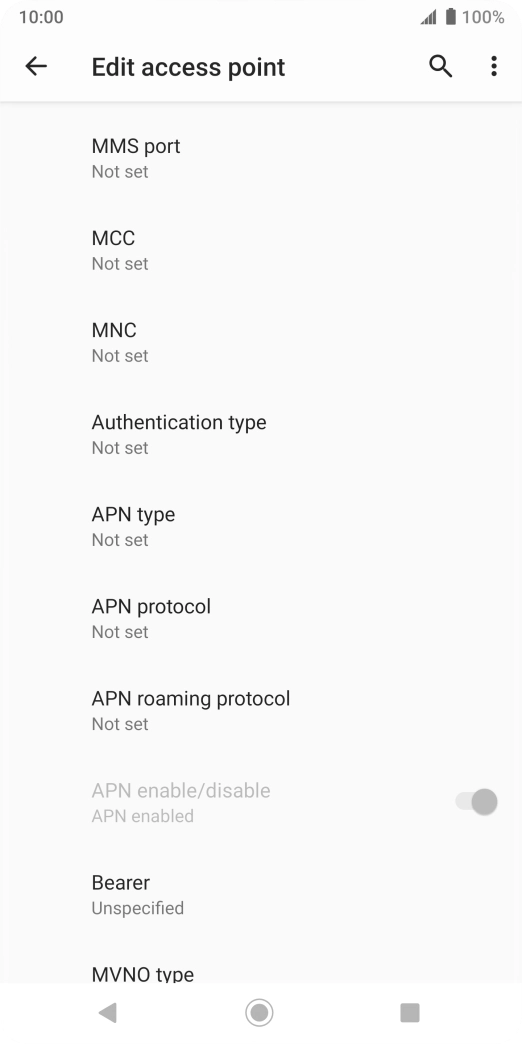

Press MMS port.
Step 18 of 30

Press MMS port.

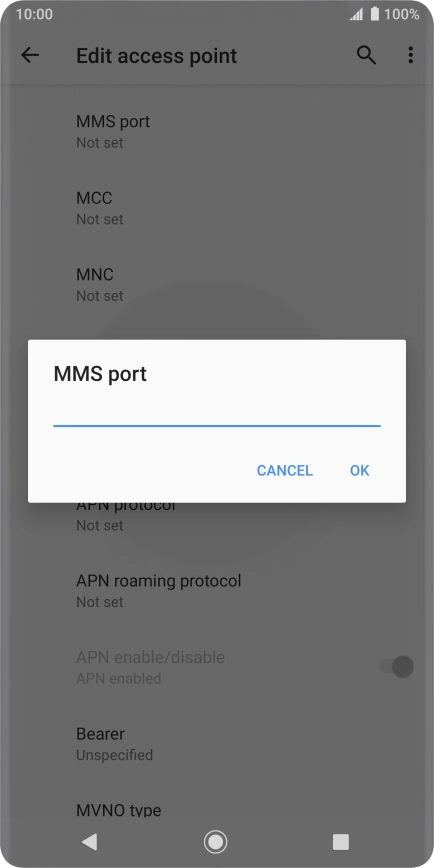

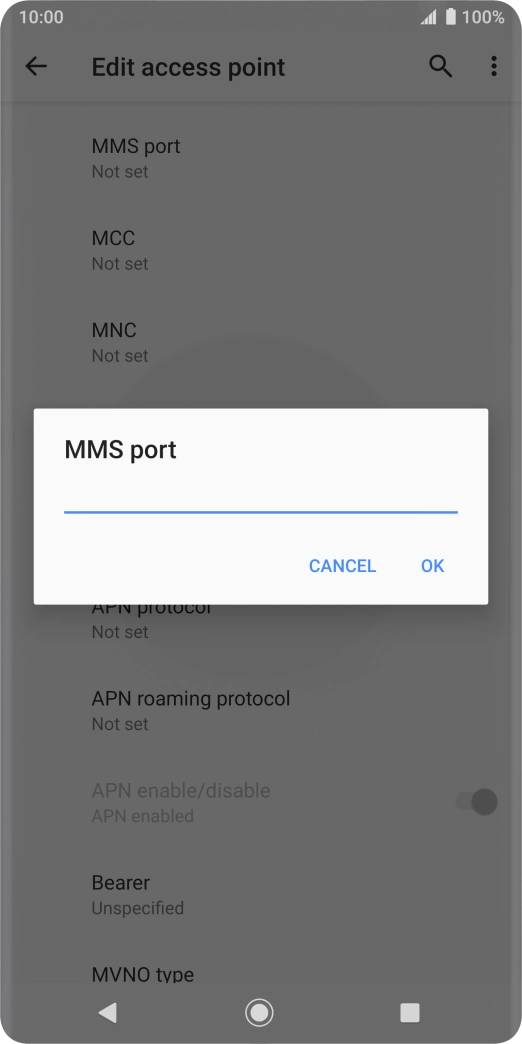

Key in 8080 and press OK.
8080
Step 19 of 30

Key in 8080 and press OK.

Press MCC.
Step 20 of 30

Press MCC.

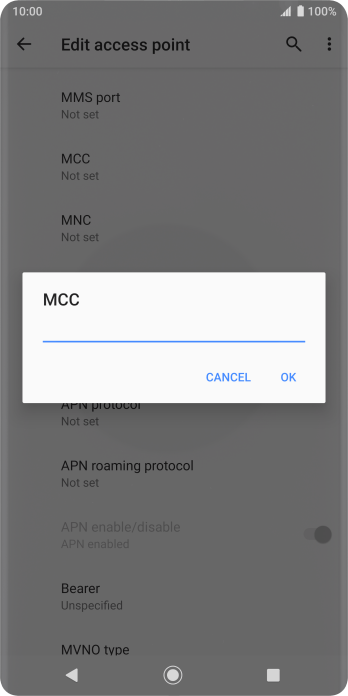

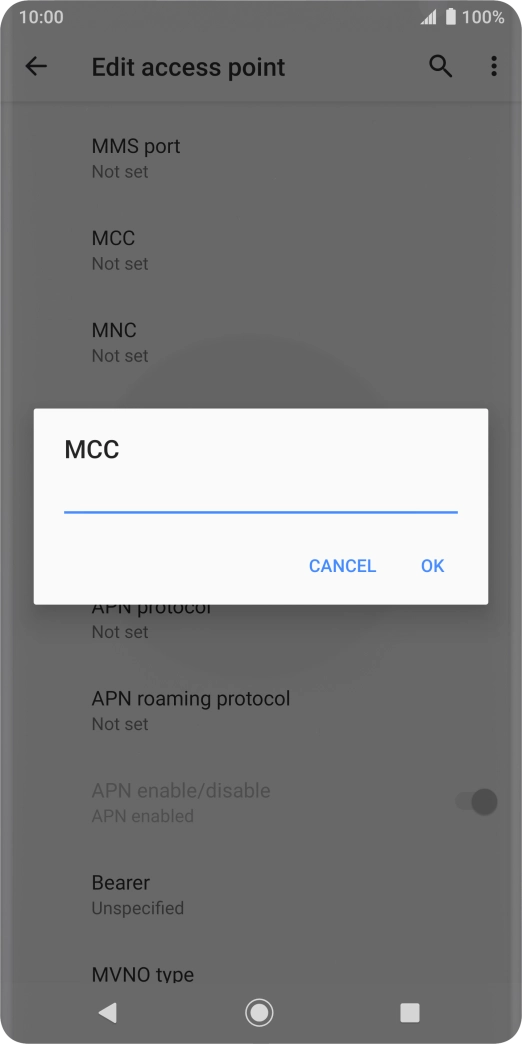

Key in 234 and press OK.
234
Step 21 of 30

Key in 234 and press OK.

Press MNC.
Step 22 of 30

Press MNC.

Key in 33 and press OK.
33
Step 23 of 30

Key in 33 and press OK.

Press Authentication type.
Step 24 of 30

Press Authentication type.

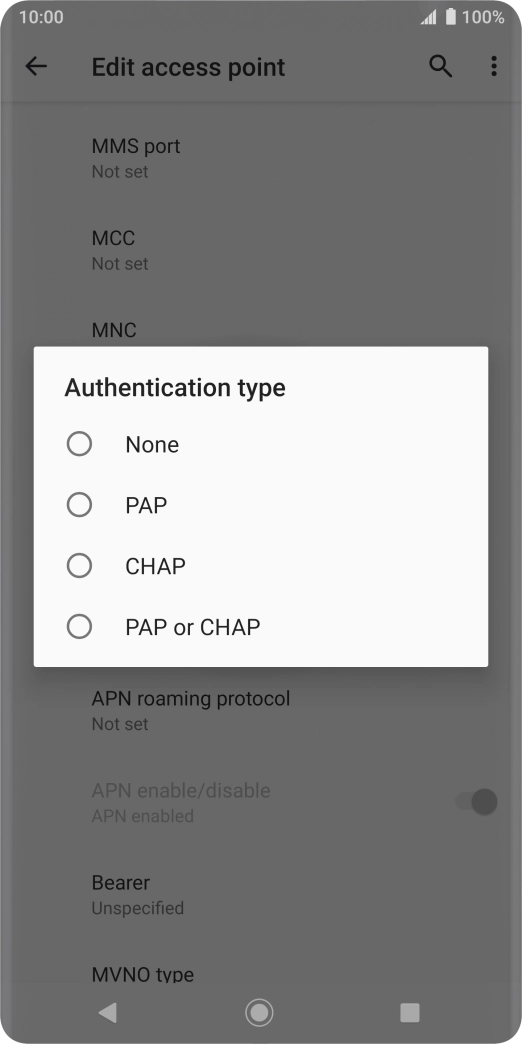

Press PAP.
Step 25 of 30

Press PAP.

Press APN type.
Step 26 of 30

Press APN type.

Key in mms and press OK.
mms
Step 27 of 30

Key in mms and press OK.

Press the menu icon.
Step 28 of 30

Press the menu icon.

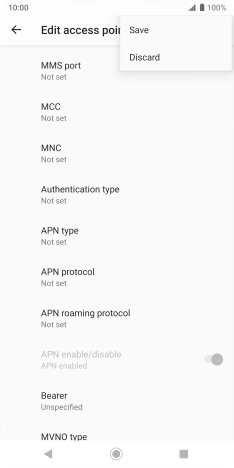

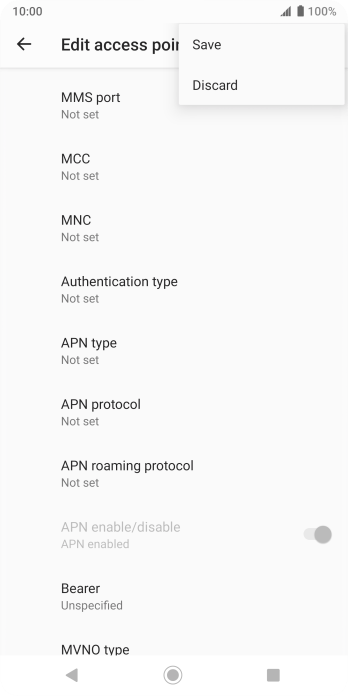

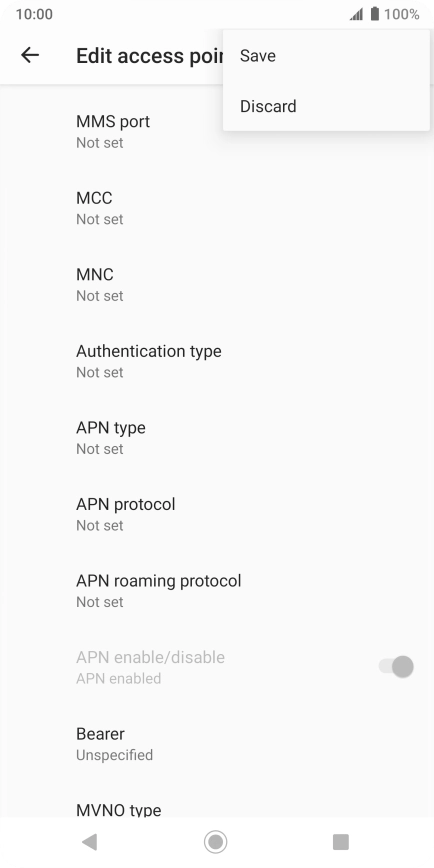

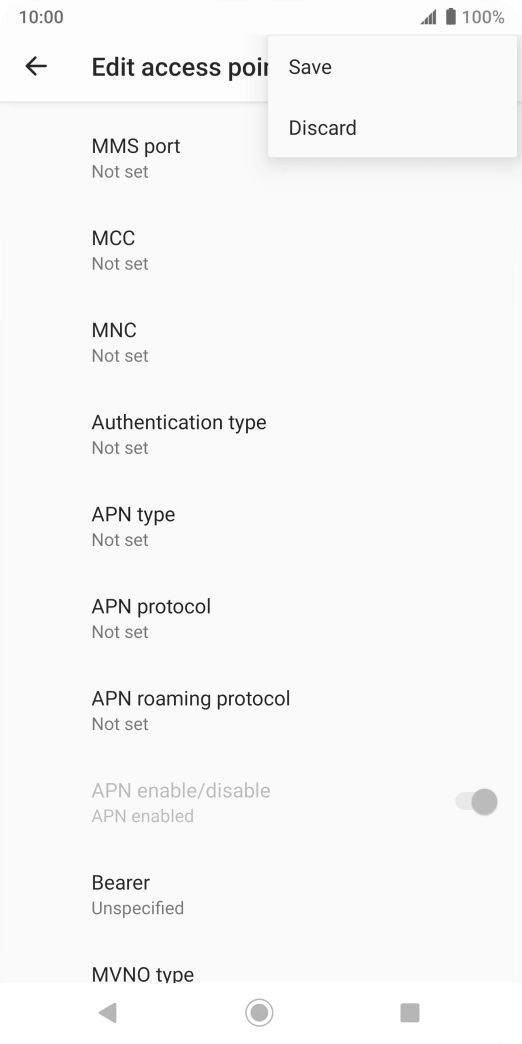

Press Save.
Step 29 of 30

Press Save.

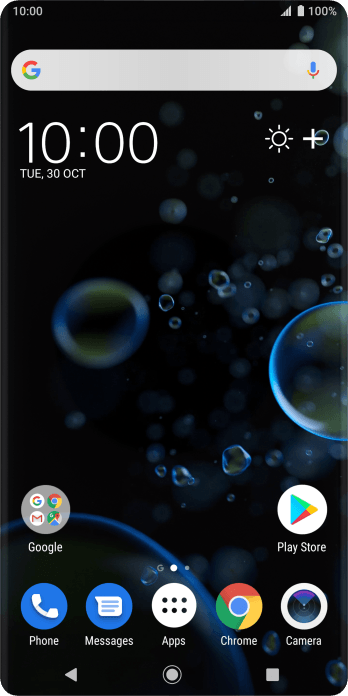

Press the Home key to return to the home screen.
Step 30 of 30

Press the Home key to return to the home screen.
